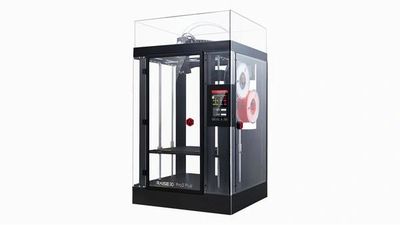

Raise 3D Printer

This new machine gives us the ability to do more rapid prototyping in-house, its max print size of 305mm x 305mm x 605mm allows us to print much larger items than we were able to previously.

Print Technology: FFF
Build Volume (W×D×H):
- Single Extrusion Print: 12×12×23.8 in / 305×305×605 mm
- Dual Extrusion Print: 11×12×23.8 in / 280×305×605 mm
Machine Size (W×D×H): 24.4×23.2×43.5 in / 620×590×1105 mm
Print Head: Dual-head with electronic lifting system
Filament Diameter: 1.75mm
XY Step Size: 0.78125 micron
Z Step Size: 0.078125 micron
Print Head Travel Speed: 30 - 150 mm/s
Build Plate: Heated aluminum build plate with magnetic holding
Max Build Plate Temperature: 110 ºC
Heated Bed Material: Silicone
Build Plate Leveling: Pre-calibrated leveling
Supported Materials:
PLA / ABS / HIPS / PC / TPU / TPE / NYLON / PETG / ASA / PP / PVA / Glass Fiber Filled / Carbon Fiber Enforced / Metal Particles Filled / Wood Filled
Nozzle Diameter: 0.2/ 0.4/ 0.6/ 0.8/ 1.0 mm
Max Nozzle Temperature: 300 ºC
Connectivity: Wi-Fi, LAN, USB port, Live camera
Noise emission (acoustic): ＜50dB(A) when building.
